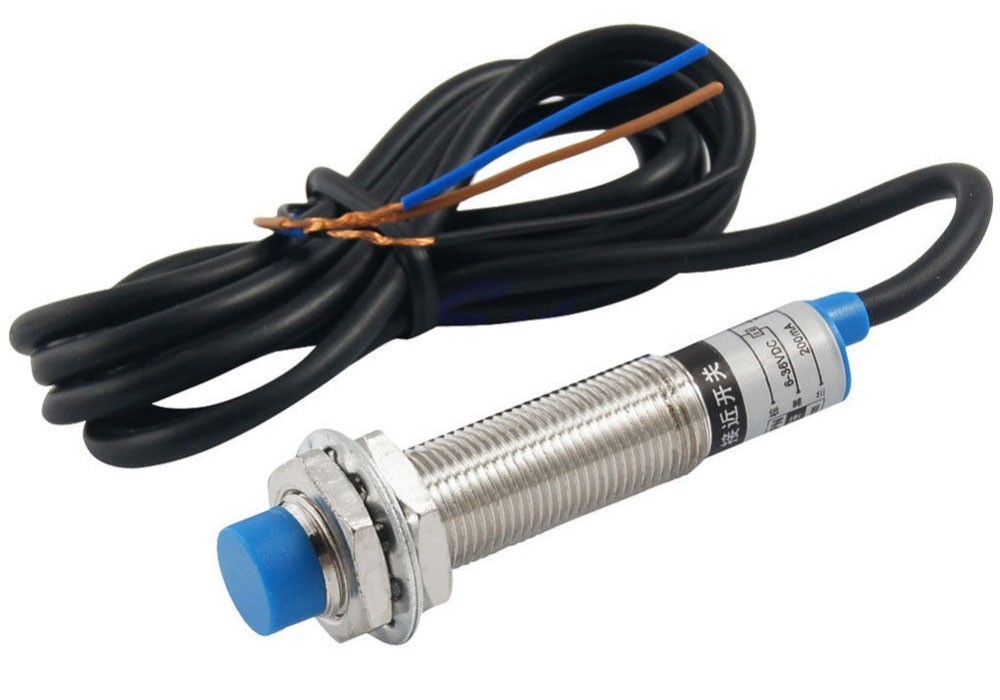

LJ12A3-4-Z/BX Proximity Sensor 12mm/4mm

LJ12A3-4-Z/BX Proximity Sensor 12mm/4mm
7,50 €

Availability: In stock

Inductive proximity sensor widely used in 3D printers for bed levelling or just as an alternative endstop. It is a great way to get rid of manually levelling the bed and the nozzle clearance. There is an option in Marlin that you need to enable and everything else is automatic. Once you use it, you will never want to go back. Easily connects to RAMPS or other motherboard.
Add to Cart


  • Wire Type : 3 Wire Type (Black, Brown, Blue)
  • Output Type : NPN NO(Normal Open)
  • Diameter of body : 12mm
  • Detecting Distance : 4mm
  • Supply Voltage : DC 6-36V
  • Current Output : 300mA


Correction Factors

Mild Steel 1.0
Stainless Steel 0.85
Brass 0.50
Aluminum 0.45
Copper 0.40
